2 In 1 Ultrasound system

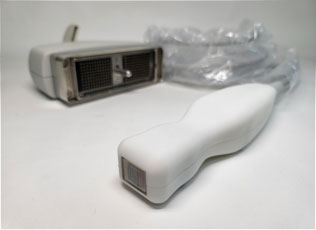

iBULe has a developed a piezoelectric single crystal 2D array probe with integrated diagnostic and therapeutic functions, and built a portable system by merging it with a system board equipped with beamforming and 3D imaging function. .

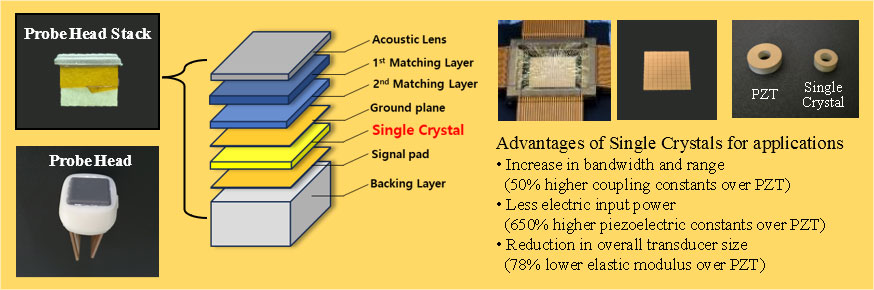

- High piezoelectric coefficient and bandwidth characteristics enable integration of therapeutic and diagnostic functions

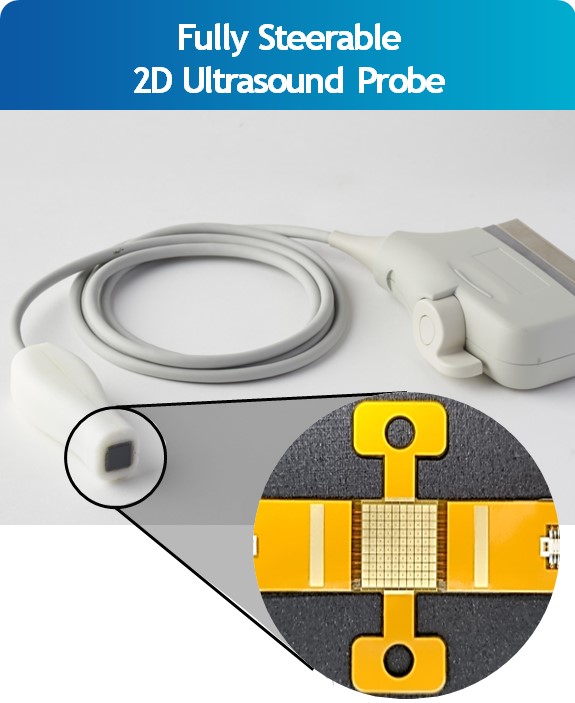

- 2D phased array technology allows for 3D imaging
- Smaller size compared to same frequency PZT probes
- High acoustic strength and broad bandwidth models available depending on cell fabrication type
- Multi-dimensional, real-time diagnostic capabilities with 3D imaging

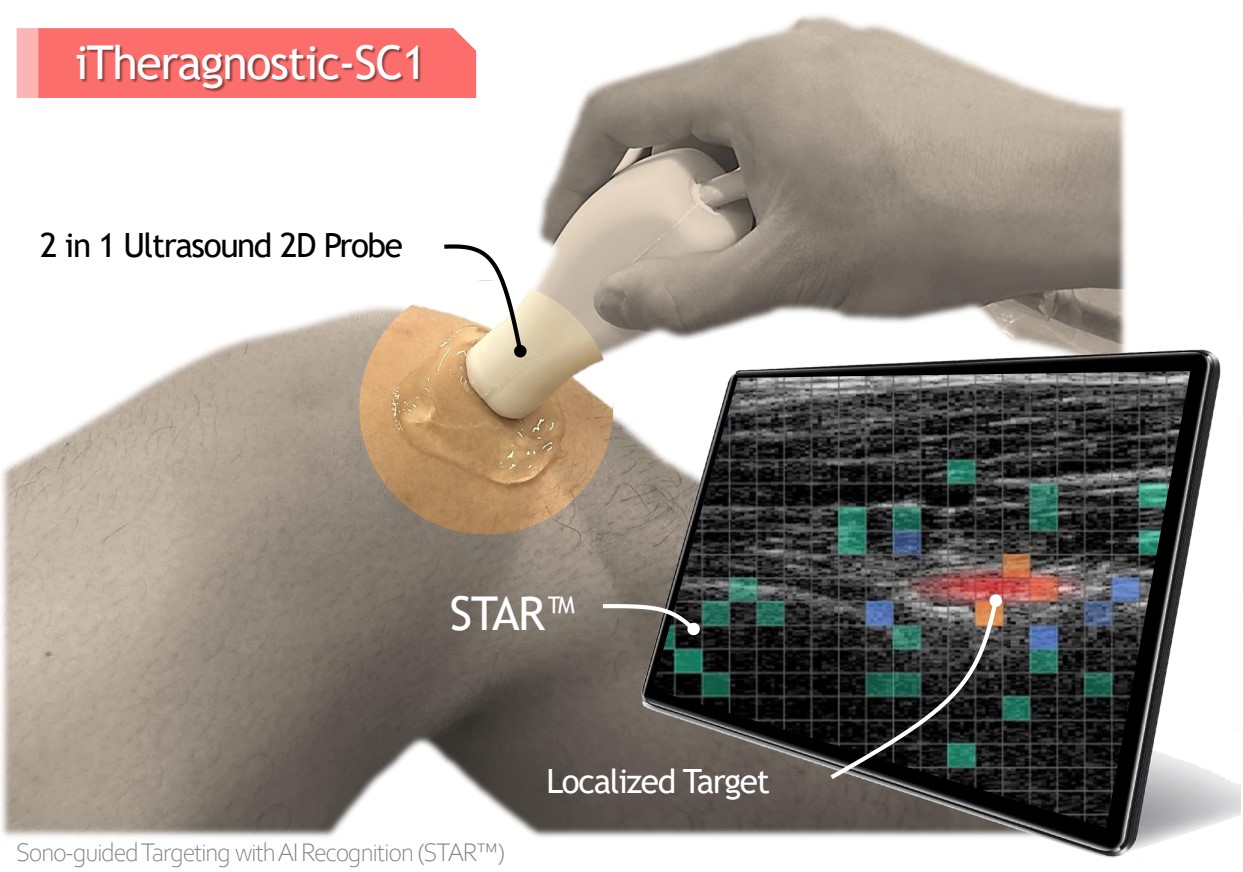

- Beam focusing capability for treatment during diagnosis
- Synthetic focusing enables multi-angle, high-resolution image acquisition

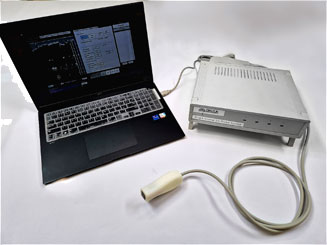

- Portable system operable with a laptop
